#include <WaveTable.h>

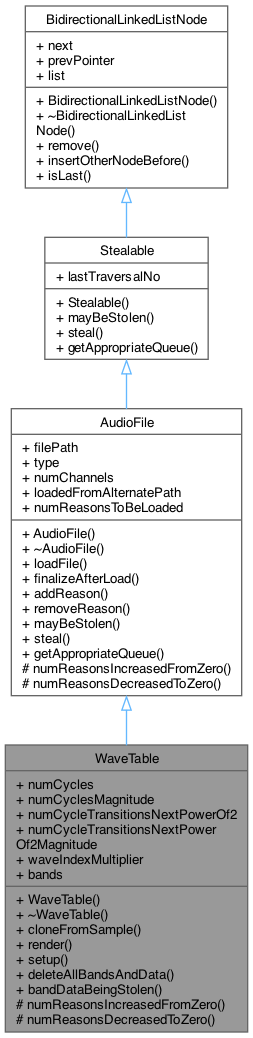

Inheritance diagram for WaveTable:

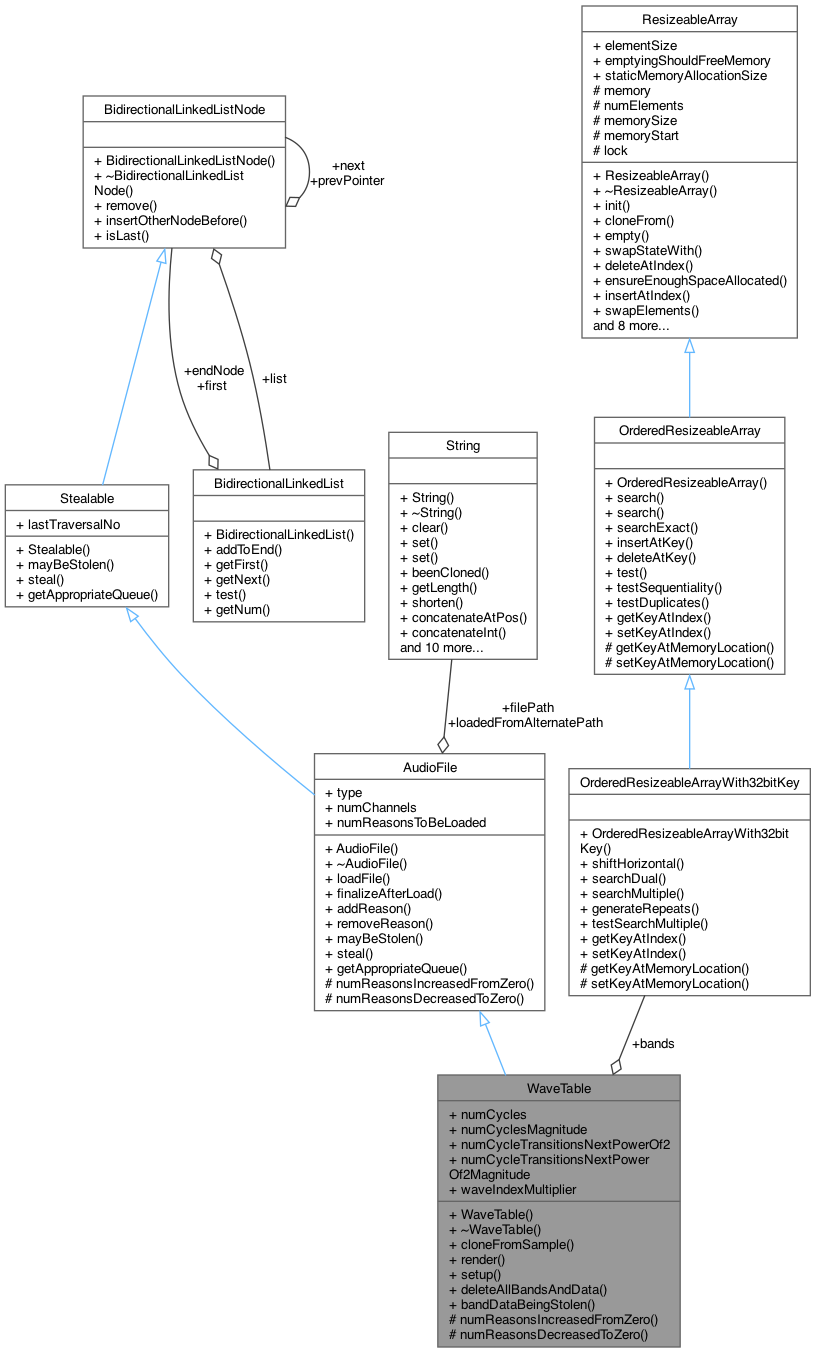

Collaboration diagram for WaveTable:

Public Member Functions
	WaveTable ()

	~WaveTable ()

int	cloneFromSample (Sample *sample)

uint32_t	render (int32_t *outputBuffer, int numSamples, uint32_t phaseIncrementNow, uint32_t phase, bool doOscSync, uint32_t resetterPhase, uint32_t resetterPhaseIncrement, uint32_t resetterDivideByPhaseIncrement, uint32_t retriggerPhase, int32_t waveIndex, int32_t waveIndexIncrement)

int	setup (Sample sample, int nativeNumSamplesPerCycle=0, uint32_t audioDataStartPosBytes=0, uint32_t audioDataLengthBytes=0, int byteDepth=0, int rawDataFormat=0, WaveTableReader reader=NULL)

void	deleteAllBandsAndData ()

void	bandDataBeingStolen (WaveTableBandData *bandData)

Public Member Functions inherited from AudioFile
	AudioFile (int newType)

virtual	~AudioFile ()

int	loadFile (AudioFileReader *reader, bool isAiff, bool makeWaveTableWorkAtAllCosts)

virtual void	finalizeAfterLoad (uint32_t fileSize)

void	addReason ()

void	removeReason (char const *errorCode)

bool	mayBeStolen (void *thingNotToStealFrom=NULL)

void	steal (char const *errorCode)

int	getAppropriateQueue ()

Public Member Functions inherited from Stealable
	Stealable ()

virtual bool	mayBeStolen (void *thingNotToStealFrom)=0

virtual void	steal (char const *errorCode)=0

virtual int	getAppropriateQueue ()=0

Public Member Functions inherited from BidirectionalLinkedListNode
	BidirectionalLinkedListNode ()

virtual	~BidirectionalLinkedListNode ()

void	remove ()

void	insertOtherNodeBefore (BidirectionalLinkedListNode *otherNode)

bool	isLast ()

Public Attributes
int	numCycles

int	numCyclesMagnitude

int	numCycleTransitionsNextPowerOf2

int	numCycleTransitionsNextPowerOf2Magnitude

int32_t	waveIndexMultiplier

OrderedResizeableArrayWith32bitKey	bands

Public Attributes inherited from AudioFile
String	filePath

const uint8_t	type

uint8_t	numChannels

String	loadedFromAlternatePath

int32_t	numReasonsToBeLoaded

Public Attributes inherited from Stealable
uint32_t	lastTraversalNo

Public Attributes inherited from BidirectionalLinkedListNode
BidirectionalLinkedListNode *	next

BidirectionalLinkedListNode **	prevPointer

BidirectionalLinkedList *	list

Protected Member Functions
void	numReasonsIncreasedFromZero ()

void	numReasonsDecreasedToZero (char const *errorCode)

virtual void	numReasonsIncreasedFromZero ()

virtual void	numReasonsDecreasedToZero (char const *errorCode)

Constructor & Destructor Documentation

◆ WaveTable()

WaveTable::WaveTable ( )

◆ ~WaveTable()

WaveTable::~WaveTable ( )

Member Function Documentation

◆ bandDataBeingStolen()

void WaveTable::bandDataBeingStolen ( WaveTableBandData * bandData )

◆ cloneFromSample()

int WaveTable::cloneFromSample ( Sample * sample )

◆ deleteAllBandsAndData()

void WaveTable::deleteAllBandsAndData ( )

◆ numReasonsDecreasedToZero()

void WaveTable::numReasonsDecreasedToZero ( char const * errorCode )

protectedvirtual

Reimplemented from AudioFile.

◆ numReasonsIncreasedFromZero()

void WaveTable::numReasonsIncreasedFromZero ( )

protectedvirtual

Reimplemented from AudioFile.

◆ render()

uint32_t WaveTable::render	(	int32_t *	outputBuffer,
		int	numSamples,
		uint32_t	phaseIncrementNow,
		uint32_t	phase,
		bool	doOscSync,
		uint32_t	resetterPhase,
		uint32_t	resetterPhaseIncrement,
		uint32_t	resetterDivideByPhaseIncrement,
		uint32_t	retriggerPhase,
		int32_t	waveIndex,
		int32_t	waveIndexIncrement
	)

◆ setup()

int WaveTable::setup	(	Sample *	sample,
		int	nativeNumSamplesPerCycle = `0`,
		uint32_t	audioDataStartPosBytes = `0`,
		uint32_t	audioDataLengthBytes = `0`,
		int	byteDepth = `0`,
		int	rawDataFormat = `0`,
		WaveTableReader *	reader = `NULL`
	)

Member Data Documentation

◆ bands

OrderedResizeableArrayWith32bitKey WaveTable::bands

◆ numCycles

int WaveTable::numCycles

◆ numCyclesMagnitude

int WaveTable::numCyclesMagnitude

◆ numCycleTransitionsNextPowerOf2

int WaveTable::numCycleTransitionsNextPowerOf2

◆ numCycleTransitionsNextPowerOf2Magnitude

int WaveTable::numCycleTransitionsNextPowerOf2Magnitude

◆ waveIndexMultiplier

int32_t WaveTable::waveIndexMultiplier

The documentation for this class was generated from the following files:

src/WaveTable.h
src/WaveTable.cpp
