#include <CVEngine.h>

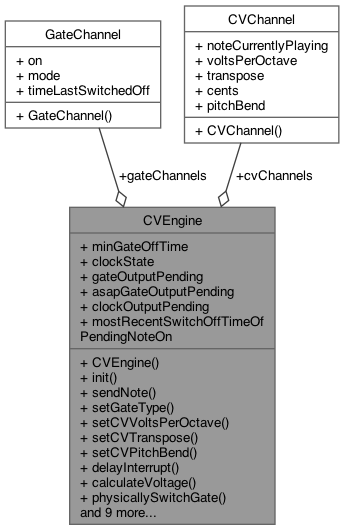

Collaboration diagram for CVEngine:

Public Member Functions
	CVEngine ()

void	init ()

void	sendNote (bool on, uint8_t channel, int16_t note=-32768)

void	setGateType (uint8_t whichGate, uint8_t value)

void	setCVVoltsPerOctave (uint8_t channel, uint8_t value)

void	setCVTranspose (uint8_t channel, int semitones, int cents)

void	setCVPitchBend (uint8_t channel, int32_t value, bool outputToo=true)

void	delayInterrupt ()

int32_t	calculateVoltage (int note, uint8_t channel)

void	physicallySwitchGate (int channel)

void	analogOutTick ()

void	playbackBegun ()

void	playbackEnded ()

void	updateClockOutput ()

void	updateRunOutput ()

bool	isTriggerClockOutputEnabled ()

void	updateGateOutputs ()

void	sendVoltageOut (uint8_t channel, uint16_t voltage)

bool	isNoteOn (int channel, int note)

Public Attributes
GateChannel	gateChannels [NUM_GATE_CHANNELS]

CVChannel	cvChannels [NUM_CV_CHANNELS]

uint8_t	minGateOffTime

bool	clockState

bool	gateOutputPending

bool	asapGateOutputPending

bool	clockOutputPending

uint32_t	mostRecentSwitchOffTimeOfPendingNoteOn

Constructor & Destructor Documentation

◆ CVEngine()

CVEngine::CVEngine ( )

Member Function Documentation

◆ analogOutTick()

void CVEngine::analogOutTick ( )

◆ calculateVoltage()

int32_t CVEngine::calculateVoltage	(	int	note,
		uint8_t	channel
	)

◆ delayInterrupt()

void CVEngine::delayInterrupt ( )

◆ init()

void CVEngine::init ( )

◆ isNoteOn()

bool CVEngine::isNoteOn	(	int	channel,
		int	note
	)

inline

◆ isTriggerClockOutputEnabled()

bool CVEngine::isTriggerClockOutputEnabled ( )

◆ physicallySwitchGate()

void CVEngine::physicallySwitchGate ( int channel )

◆ playbackBegun()

void CVEngine::playbackBegun ( )

◆ playbackEnded()

void CVEngine::playbackEnded ( )

◆ sendNote()

void CVEngine::sendNote	(	bool	on,
		uint8_t	channel,
		int16_t	note = `-32768`
	)

◆ sendVoltageOut()

void CVEngine::sendVoltageOut	(	uint8_t	channel,
		uint16_t	voltage
	)

◆ setCVPitchBend()

void CVEngine::setCVPitchBend	(	uint8_t	channel,
		int32_t	value,
		bool	outputToo = `true`
	)

◆ setCVTranspose()

void CVEngine::setCVTranspose	(	uint8_t	channel,
		int	semitones,
		int	cents
	)

◆ setCVVoltsPerOctave()

void CVEngine::setCVVoltsPerOctave	(	uint8_t	channel,
		uint8_t	value
	)

◆ setGateType()

void CVEngine::setGateType	(	uint8_t	whichGate,
		uint8_t	value
	)

◆ updateClockOutput()

void CVEngine::updateClockOutput ( )

◆ updateGateOutputs()

void CVEngine::updateGateOutputs ( )

◆ updateRunOutput()

void CVEngine::updateRunOutput ( )

Member Data Documentation

◆ asapGateOutputPending

bool CVEngine::asapGateOutputPending

◆ clockOutputPending

bool CVEngine::clockOutputPending

◆ clockState

bool CVEngine::clockState

◆ cvChannels

CVChannel CVEngine::cvChannels[NUM_CV_CHANNELS]

◆ gateChannels

GateChannel CVEngine::gateChannels[NUM_GATE_CHANNELS]

◆ gateOutputPending

bool CVEngine::gateOutputPending

◆ minGateOffTime

uint8_t CVEngine::minGateOffTime

◆ mostRecentSwitchOffTimeOfPendingNoteOn

uint32_t CVEngine::mostRecentSwitchOffTimeOfPendingNoteOn

The documentation for this class was generated from the following files:

src/CVEngine.h
src/CVEngine.cpp
