MIDIDevice Class Reference

#include <MIDIDevice.h>

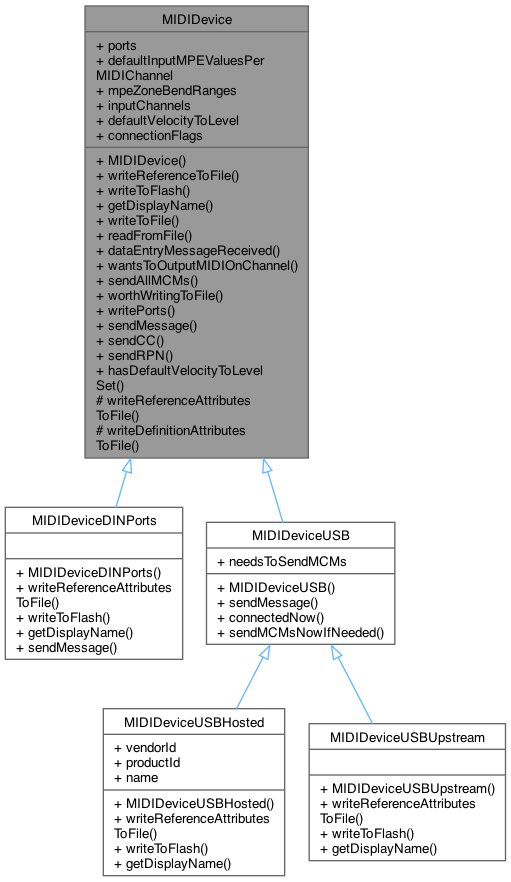

Inheritance diagram for MIDIDevice:

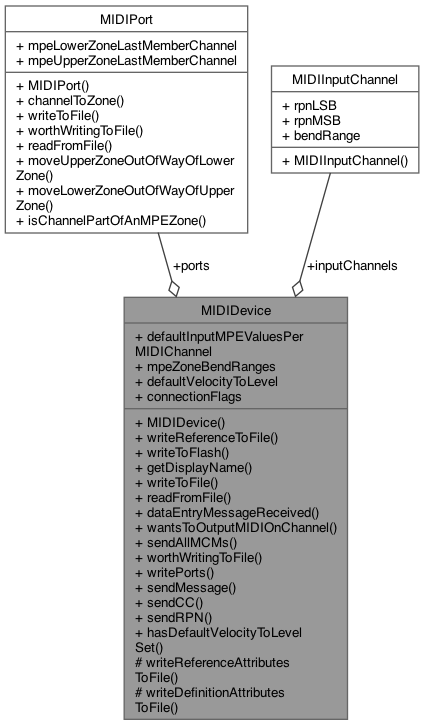

Collaboration diagram for MIDIDevice:

Public Member Functions
	MIDIDevice ()
void	writeReferenceToFile (char const *tagName="device")
virtual void	writeToFlash (uint8_t *memory)=0
virtual char const *	getDisplayName ()=0
void	writeToFile (char const *tagName)
void	readFromFile ()
void	dataEntryMessageReceived (ModelStack *modelStack, int channel, int msb)
bool	wantsToOutputMIDIOnChannel (int channel, int filter)
void	sendAllMCMs ()
bool	worthWritingToFile ()
void	writePorts ()
virtual void	sendMessage (uint8_t statusType, uint8_t channel, uint8_t data1, uint8_t data2)=0
void	sendCC (int channel, int cc, int value)
void	sendRPN (int channel, int rpnMSB, int rpnLSB, int valueMSB)
bool	hasDefaultVelocityToLevelSet ()

Public Attributes
MIDIPort	ports [2]
int16_t	defaultInputMPEValuesPerMIDIChannel [16][NUM_EXPRESSION_DIMENSIONS]
uint8_t	mpeZoneBendRanges [2][2]
MIDIInputChannel	inputChannels [16]
int32_t	defaultVelocityToLevel
uint8_t	connectionFlags

Protected Member Functions
virtual void	writeReferenceAttributesToFile ()=0
void	writeDefinitionAttributesToFile ()

Constructor & Destructor Documentation

MIDIDevice()

MIDIDevice::MIDIDevice

(

)

Member Function Documentation

dataEntryMessageReceived()

void MIDIDevice::dataEntryMessageReceived	(	ModelStack *	modelStack,
		int	channel,
		int	msb
	)

getDisplayName()

virtual char const * MIDIDevice::getDisplayName ( )

pure virtual

Implemented in MIDIDeviceUSBHosted, MIDIDeviceUSBUpstream, and MIDIDeviceDINPorts.

hasDefaultVelocityToLevelSet()

bool MIDIDevice::hasDefaultVelocityToLevelSet ( )

inline

readFromFile()

void MIDIDevice::readFromFile

(

)

sendAllMCMs()

void MIDIDevice::sendAllMCMs

(

)

sendCC()

void MIDIDevice::sendCC ( int  channel, int  cc, int  value  )

inline

sendMessage()

virtual void MIDIDevice::sendMessage ( uint8_t  statusType, uint8_t  channel, uint8_t  data1, uint8_t  data2  )

pure virtual

Implemented in MIDIDeviceUSB, and MIDIDeviceDINPorts.

sendRPN()

void MIDIDevice::sendRPN	(	int	channel,
		int	rpnMSB,
		int	rpnLSB,
		int	valueMSB
	)

wantsToOutputMIDIOnChannel()

bool MIDIDevice::wantsToOutputMIDIOnChannel	(	int	channel,
		int	filter
	)

worthWritingToFile()

bool MIDIDevice::worthWritingToFile

(

)

writeDefinitionAttributesToFile()

void MIDIDevice::writeDefinitionAttributesToFile ( )

protected

writePorts()

void MIDIDevice::writePorts

(

)

writeReferenceAttributesToFile()

virtual void MIDIDevice::writeReferenceAttributesToFile ( )

protectedpure virtual

Implemented in MIDIDeviceUSBHosted, MIDIDeviceUSBUpstream, and MIDIDeviceDINPorts.

writeReferenceToFile()

void MIDIDevice::writeReferenceToFile

(

char const *

tagName = "device"

)

writeToFile()

void MIDIDevice::writeToFile

(

char const *

tagName

)

writeToFlash()

virtual void MIDIDevice::writeToFlash ( uint8_t *  memory )

pure virtual

Implemented in MIDIDeviceUSBHosted, MIDIDeviceUSBUpstream, and MIDIDeviceDINPorts.

Member Data Documentation

connectionFlags

uint8_t MIDIDevice::connectionFlags

defaultInputMPEValuesPerMIDIChannel

int16_t MIDIDevice::defaultInputMPEValuesPerMIDIChannel[16][NUM_EXPRESSION_DIMENSIONS]

defaultVelocityToLevel

int32_t MIDIDevice::defaultVelocityToLevel

inputChannels

MIDIInputChannel MIDIDevice::inputChannels[16]

mpeZoneBendRanges

uint8_t MIDIDevice::mpeZoneBendRanges[2][2]

ports

MIDIPort MIDIDevice::ports[2]

---

The documentation for this class was generated from the following files:

• src/MIDIDevice.h
• src/MIDIDevice.cpp
