MidiEngine Class Reference

#include <midiengine.h>

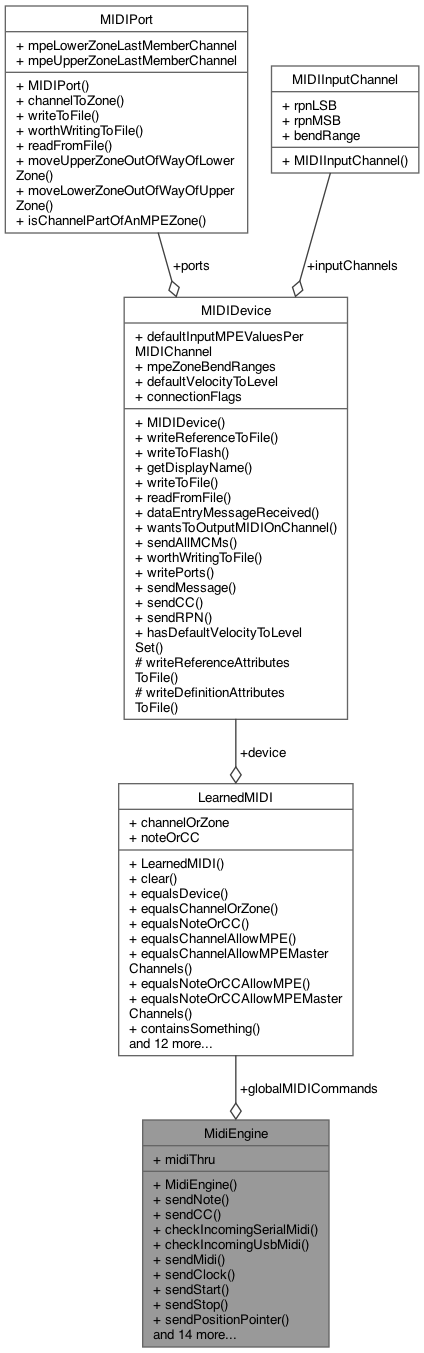

Collaboration diagram for MidiEngine:

Public Member Functions
	MidiEngine ()
void	sendNote (bool on, int note, uint8_t velocity, uint8_t channel, int filter)
void	sendCC (int channel, int cc, int value, int filter)
bool	checkIncomingSerialMidi ()
void	checkIncomingUsbMidi ()
void	sendMidi (uint8_t statusType, uint8_t channel, uint8_t data1=0, uint8_t data2=0, int filter=MIDI_OUTPUT_FILTER_NO_MPE, bool sendUSB=true)
void	sendClock (bool sendUSB=true, int howMany=1)
void	sendStart ()
void	sendStop ()
void	sendPositionPointer (uint16_t positionPointer)
void	sendContinue ()
void	flushMIDI ()
void	sendUsbMidi (uint8_t statusType, uint8_t channel, uint8_t data1, uint8_t data2, int filter)
void	sendSerialMidi (uint8_t statusType, uint8_t channel, uint8_t data1, uint8_t data2)
void	sendPGMChange (int channel, int pgm, int filter)
void	sendAllNotesOff (int channel, int filter)
void	sendBank (int channel, int num, int filter)
void	sendSubBank (int channel, int num, int filter)
void	sendPitchBend (int channel, uint8_t lsbs, uint8_t msbs, int filter)
void	sendChannelAftertouch (int channel, uint8_t value, int filter)
void	sendPolyphonicAftertouch (int channel, uint8_t value, uint8_t noteCode, int filter)
bool	anythingInOutputBuffer ()
void	setupUSBHostReceiveTransfer (int ip, int midiDeviceNum)
void	flushUSBMIDIOutput ()

Public Attributes
LearnedMIDI	globalMIDICommands [NUM_GLOBAL_MIDI_COMMANDS]
bool	midiThru

Constructor & Destructor Documentation

MidiEngine()

MidiEngine::MidiEngine

(

)

Member Function Documentation

anythingInOutputBuffer()

bool MidiEngine::anythingInOutputBuffer

(

)

checkIncomingSerialMidi()

bool MidiEngine::checkIncomingSerialMidi

(

)

checkIncomingUsbMidi()

void MidiEngine::checkIncomingUsbMidi

(

)

flushMIDI()

void MidiEngine::flushMIDI

(

)

flushUSBMIDIOutput()

void MidiEngine::flushUSBMIDIOutput

(

)

sendAllNotesOff()

void MidiEngine::sendAllNotesOff	(	int	channel,
		int	filter
	)

sendBank()

void MidiEngine::sendBank	(	int	channel,
		int	num,
		int	filter
	)

sendCC()

void MidiEngine::sendCC	(	int	channel,
		int	cc,
		int	value,
		int	filter
	)

sendChannelAftertouch()

void MidiEngine::sendChannelAftertouch	(	int	channel,
		uint8_t	value,
		int	filter
	)

sendClock()

void MidiEngine::sendClock	(	bool	sendUSB = true,
		int	howMany = 1
	)

sendContinue()

void MidiEngine::sendContinue

(

)

sendMidi()

void MidiEngine::sendMidi	(	uint8_t	statusType,
		uint8_t	channel,
		uint8_t	data1 = 0,
		uint8_t	data2 = 0,
		int	filter = MIDI_OUTPUT_FILTER_NO_MPE,
		bool	sendUSB = true
	)

sendNote()

void MidiEngine::sendNote	(	bool	on,
		int	note,
		uint8_t	velocity,
		uint8_t	channel,
		int	filter
	)

sendPGMChange()

void MidiEngine::sendPGMChange	(	int	channel,
		int	pgm,
		int	filter
	)

sendPitchBend()

void MidiEngine::sendPitchBend	(	int	channel,
		uint8_t	lsbs,
		uint8_t	msbs,
		int	filter
	)

sendPolyphonicAftertouch()

void MidiEngine::sendPolyphonicAftertouch	(	int	channel,
		uint8_t	value,
		uint8_t	noteCode,
		int	filter
	)

sendPositionPointer()

void MidiEngine::sendPositionPointer

(

uint16_t

positionPointer

)

sendSerialMidi()

void MidiEngine::sendSerialMidi	(	uint8_t	statusType,
		uint8_t	channel,
		uint8_t	data1,
		uint8_t	data2
	)

sendStart()

void MidiEngine::sendStart

(

)

sendStop()

void MidiEngine::sendStop

(

)

sendSubBank()

void MidiEngine::sendSubBank	(	int	channel,
		int	num,
		int	filter
	)

sendUsbMidi()

void MidiEngine::sendUsbMidi	(	uint8_t	statusType,
		uint8_t	channel,
		uint8_t	data1,
		uint8_t	data2,
		int	filter
	)

setupUSBHostReceiveTransfer()

void MidiEngine::setupUSBHostReceiveTransfer	(	int	ip,
		int	midiDeviceNum
	)

Member Data Documentation

globalMIDICommands

LearnedMIDI MidiEngine::globalMIDICommands[NUM_GLOBAL_MIDI_COMMANDS]

midiThru

bool MidiEngine::midiThru

---

The documentation for this class was generated from the following files:

• src/midiengine.h
• src/midiengine.cpp
