ArpeggiatorBase Class Reference

#include <Arpeggiator.h>

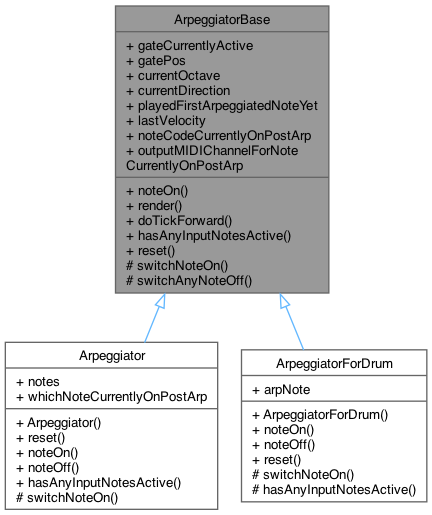

Inheritance diagram for ArpeggiatorBase:

Collaboration diagram for ArpeggiatorBase:

Public Member Functions
virtual void	noteOn (ArpeggiatorSettings *settings, int noteCode, int velocity, ArpReturnInstruction *instruction, int fromMIDIChannel, int16_t const *mpeValues)=0
void	render (ArpeggiatorSettings *settings, int numSamples, uint32_t gateThreshold, uint32_t phaseIncrement, ArpReturnInstruction *instruction)
int32_t	doTickForward (ArpeggiatorSettings *settings, ArpReturnInstruction *instruction, uint32_t ClipCurrentPos, bool currentlyPlayingReversed)
virtual bool	hasAnyInputNotesActive ()=0
virtual void	reset ()=0

Public Attributes
bool	gateCurrentlyActive
uint32_t	gatePos
int8_t	currentOctave
int8_t	currentDirection
bool	playedFirstArpeggiatedNoteYet
uint8_t	lastVelocity
int16_t	noteCodeCurrentlyOnPostArp
uint8_t	outputMIDIChannelForNoteCurrentlyOnPostArp

Protected Member Functions
virtual void	switchNoteOn (ArpeggiatorSettings *settings, ArpReturnInstruction *instruction)=0
void	switchAnyNoteOff (ArpReturnInstruction *instruction)

Member Function Documentation

doTickForward()

int32_t ArpeggiatorBase::doTickForward	(	ArpeggiatorSettings *	settings,
		ArpReturnInstruction *	instruction,
		uint32_t	ClipCurrentPos,
		bool	currentlyPlayingReversed
	)

hasAnyInputNotesActive()

virtual bool ArpeggiatorBase::hasAnyInputNotesActive ( )

pure virtual

Implemented in ArpeggiatorForDrum, and Arpeggiator.

noteOn()

virtual void ArpeggiatorBase::noteOn ( ArpeggiatorSettings *  settings, int  noteCode, int  velocity, ArpReturnInstruction *  instruction, int  fromMIDIChannel, int16_t const *  mpeValues  )

pure virtual

Implemented in ArpeggiatorForDrum, and Arpeggiator.

render()

void ArpeggiatorBase::render	(	ArpeggiatorSettings *	settings,
		int	numSamples,
		uint32_t	gateThreshold,
		uint32_t	phaseIncrement,
		ArpReturnInstruction *	instruction
	)

reset()

virtual void ArpeggiatorBase::reset ( )

pure virtual

Implemented in ArpeggiatorForDrum, and Arpeggiator.

switchAnyNoteOff()

void ArpeggiatorBase::switchAnyNoteOff ( ArpReturnInstruction *  instruction )

protected

switchNoteOn()

virtual void ArpeggiatorBase::switchNoteOn ( ArpeggiatorSettings *  settings, ArpReturnInstruction *  instruction  )

protectedpure virtual

Implemented in ArpeggiatorForDrum, and Arpeggiator.

Member Data Documentation

currentDirection

int8_t ArpeggiatorBase::currentDirection

currentOctave

int8_t ArpeggiatorBase::currentOctave

gateCurrentlyActive

bool ArpeggiatorBase::gateCurrentlyActive

gatePos

uint32_t ArpeggiatorBase::gatePos

lastVelocity

uint8_t ArpeggiatorBase::lastVelocity

noteCodeCurrentlyOnPostArp

int16_t ArpeggiatorBase::noteCodeCurrentlyOnPostArp

outputMIDIChannelForNoteCurrentlyOnPostArp

uint8_t ArpeggiatorBase::outputMIDIChannelForNoteCurrentlyOnPostArp

playedFirstArpeggiatedNoteYet

bool ArpeggiatorBase::playedFirstArpeggiatedNoteYet

---

The documentation for this class was generated from the following files:

• src/Arpeggiator.h
• src/Arpeggiator.cpp
