TimelineView Class Reference

#include <TimelineView.h>

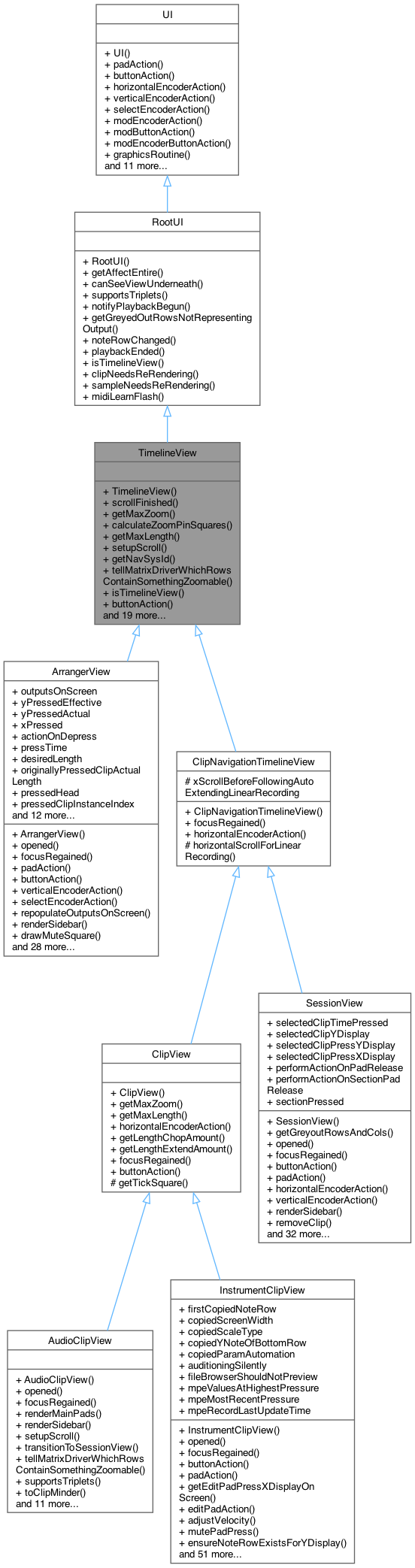

Inheritance diagram for TimelineView:

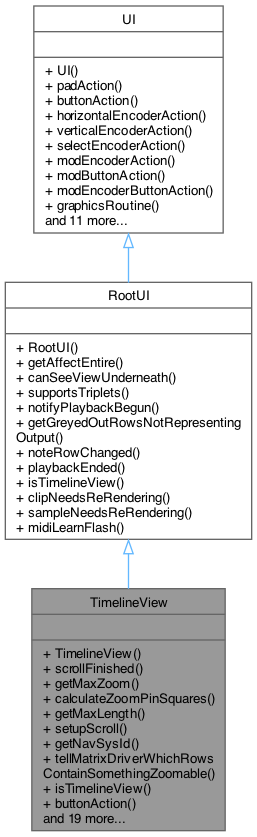

Collaboration diagram for TimelineView:

Public Member Functions
	TimelineView ()
void	scrollFinished ()
virtual unsigned int	getMaxZoom ()=0
virtual bool	calculateZoomPinSquares (uint32_t oldScroll, uint32_t newScroll, uint32_t newZoom, uint32_t oldZoom)
virtual uint32_t	getMaxLength ()=0
virtual bool	setupScroll (uint32_t oldScroll)
virtual int	getNavSysId ()
virtual void	tellMatrixDriverWhichRowsContainSomethingZoomable ()
bool	isTimelineView ()
int	buttonAction (int x, int y, bool on, bool inCardRoutine)
void	displayZoomLevel (bool justPopup=false)
int	horizontalEncoderAction (int offset)
void	displayScrollPos ()
void	displayNumberOfBarsAndBeats (uint32_t number, uint32_t quantization, bool countFromOne, char const *tooLongText)
void	initiateXScroll (uint32_t newXScroll, int numSquaresToScroll=displayWidth)
bool	zoomToMax (bool inOnly=false)
void	initiateXZoom (int zoomMagnitude, int32_t newScroll, uint32_t oldZoom)
void	midiLearnFlash ()
bool	scrollRightToEndOfLengthIfNecessary (int32_t maxLength)
bool	scrollLeftIfTooFarRight (int32_t maxLength)
void	tripletsButtonPressed ()
int32_t	getPosFromSquare (int32_t square, int32_t localScroll=-1)
int32_t	getPosFromSquare (int32_t square, int32_t xScroll, uint32_t xZoom)
int32_t	getSquareFromPos (int32_t pos, bool *rightOnSquare=NULL, int32_t localScroll=-1)
int32_t	getSquareFromPos (int32_t pos, bool *rightOnSquare, int32_t xScroll, uint32_t xZoom)
int32_t	getSquareEndFromPos (int32_t pos, int32_t localScroll=-1)
bool	isSquareDefined (int square, int32_t xScroll=-1)
bool	isSquareDefined (int square, int32_t xScroll, uint32_t xZoom)
bool	inTripletsView ()
Public Member Functions inherited from RootUI
	RootUI ()
virtual bool	getAffectEntire ()
bool	canSeeViewUnderneath () final
virtual bool	supportsTriplets ()
virtual void	notifyPlaybackBegun ()
virtual uint32_t	getGreyedOutRowsNotRepresentingOutput (Output *output)
virtual void	noteRowChanged (InstrumentClip *clip, NoteRow *noteRow)
virtual void	playbackEnded ()
virtual bool	isTimelineView ()
virtual void	clipNeedsReRendering (Clip *clip)
virtual void	sampleNeedsReRendering (Sample *sample)
virtual void	midiLearnFlash ()
Public Member Functions inherited from UI
	UI ()
virtual int	padAction (int x, int y, int velocity)
virtual int	buttonAction (int x, int y, bool on, bool inCardRoutine)
virtual int	horizontalEncoderAction (int offset)
virtual int	verticalEncoderAction (int offset, bool inCardRoutine)
virtual void	selectEncoderAction (int8_t offset)
virtual void	modEncoderAction (int whichModEncoder, int offset)
virtual void	modButtonAction (uint8_t whichButton, bool on)
virtual void	modEncoderButtonAction (uint8_t whichModEncoder, bool on)
virtual void	graphicsRoutine ()
virtual int	timerCallback ()
virtual bool	opened ()
virtual void	focusRegained ()
virtual bool	canSeeViewUnderneath ()
virtual ClipMinder *	toClipMinder ()
virtual void	scrollFinished ()
virtual bool	noteOnReceivedForMidiLearn (MIDIDevice *fromDevice, int channel, int note, int velocity)
virtual bool	getGreyoutRowsAndCols (uint32_t *cols, uint32_t *rows)
virtual bool	renderMainPads (uint32_t whichRows=0, uint8_t image[][displayWidth+sideBarWidth][3]=NULL, uint8_t occupancyMask[][displayWidth+sideBarWidth]=NULL, bool drawUndefinedArea=true)
virtual bool	renderSidebar (uint32_t whichRows=0, uint8_t image[][displayWidth+sideBarWidth][3]=NULL, uint8_t occupancyMask[][displayWidth+sideBarWidth]=NULL)
void	close ()

Constructor & Destructor Documentation

TimelineView()

TimelineView::TimelineView ( )

inline

Member Function Documentation

buttonAction()

int TimelineView::buttonAction ( int  x, int  y, bool  on, bool  inCardRoutine  )

virtual

Reimplemented from UI.

calculateZoomPinSquares()

bool TimelineView::calculateZoomPinSquares ( uint32_t  oldScroll, uint32_t  newScroll, uint32_t  newZoom, uint32_t  oldZoom  )

virtual

Reimplemented in SessionView.

displayNumberOfBarsAndBeats()

void TimelineView::displayNumberOfBarsAndBeats	(	uint32_t	number,
		uint32_t	quantization,
		bool	countFromOne,
		char const *	tooLongText
	)

displayScrollPos()

void TimelineView::displayScrollPos

(

)

displayZoomLevel()

void TimelineView::displayZoomLevel

(

bool

justPopup = false

)

getMaxLength()

virtual uint32_t TimelineView::getMaxLength ( )

pure virtual

Implemented in ArrangerView, AudioClipView, ClipView, and SessionView.

getMaxZoom()

virtual unsigned int TimelineView::getMaxZoom ( )

pure virtual

Implemented in ArrangerView, AudioClipView, ClipView, and SessionView.

getNavSysId()

virtual int TimelineView::getNavSysId ( )

inlinevirtual

Reimplemented in ArrangerView.

getPosFromSquare() [1/2]

int32_t TimelineView::getPosFromSquare	(	int32_t	square,
		int32_t	localScroll = -1
	)

getPosFromSquare() [2/2]

int32_t TimelineView::getPosFromSquare	(	int32_t	square,
		int32_t	xScroll,
		uint32_t	xZoom
	)

getSquareEndFromPos()

int32_t TimelineView::getSquareEndFromPos	(	int32_t	pos,
		int32_t	localScroll = -1
	)

getSquareFromPos() [1/2]

int32_t TimelineView::getSquareFromPos	(	int32_t	pos,
		bool *	rightOnSquare,
		int32_t	xScroll,
		uint32_t	xZoom
	)

getSquareFromPos() [2/2]

int32_t TimelineView::getSquareFromPos	(	int32_t	pos,
		bool *	rightOnSquare = NULL,
		int32_t	localScroll = -1
	)

horizontalEncoderAction()

int TimelineView::horizontalEncoderAction ( int  offset )

virtual

Reimplemented from UI.

initiateXScroll()

void TimelineView::initiateXScroll	(	uint32_t	newXScroll,
		int	numSquaresToScroll = displayWidth
	)

initiateXZoom()

void TimelineView::initiateXZoom	(	int	zoomMagnitude,
		int32_t	newScroll,
		uint32_t	oldZoom
	)

inTripletsView()

bool TimelineView::inTripletsView

(

)

isSquareDefined() [1/2]

bool TimelineView::isSquareDefined	(	int	square,
		int32_t	xScroll,
		uint32_t	xZoom
	)

isSquareDefined() [2/2]

bool TimelineView::isSquareDefined	(	int	square,
		int32_t	xScroll = -1
	)

isTimelineView()

bool TimelineView::isTimelineView ( )

inlinevirtual

Reimplemented from RootUI.

midiLearnFlash()

void TimelineView::midiLearnFlash ( )

virtual

Reimplemented from RootUI.

scrollFinished()

void TimelineView::scrollFinished ( )

virtual

Reimplemented from UI.

scrollLeftIfTooFarRight()

bool TimelineView::scrollLeftIfTooFarRight

(

int32_t

maxLength

)

scrollRightToEndOfLengthIfNecessary()

bool TimelineView::scrollRightToEndOfLengthIfNecessary

(

int32_t

maxLength

)

setupScroll()

bool TimelineView::setupScroll ( uint32_t  oldScroll )

virtual

Reimplemented in AudioClipView, and SessionView.

tellMatrixDriverWhichRowsContainSomethingZoomable()

virtual void TimelineView::tellMatrixDriverWhichRowsContainSomethingZoomable ( )

inlinevirtual

Reimplemented in ArrangerView, AudioClipView, and InstrumentClipView.

tripletsButtonPressed()

void TimelineView::tripletsButtonPressed

(

)

zoomToMax()

bool TimelineView::zoomToMax

(

bool

inOnly = false

)

---

The documentation for this class was generated from the following files:

• src/TimelineView.h
• src/TimelineView.cpp
