#include <MIDIDrum.h>

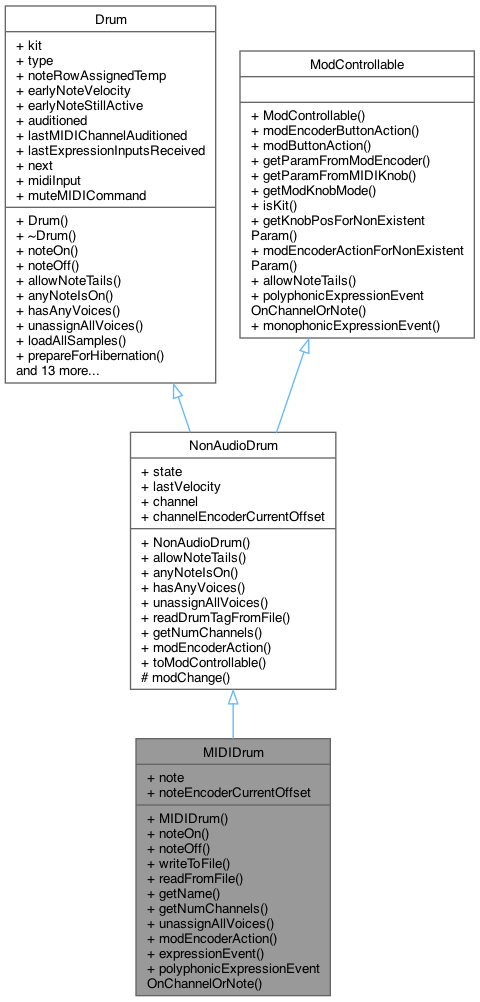

Inheritance diagram for MIDIDrum:

Collaboration diagram for MIDIDrum:

Public Member Functions
	MIDIDrum ()

void	noteOn (ModelStackWithThreeMainThings modelStack, uint8_t velocity, Kit kit, int16_t const *mpeValues, int fromMIDIChannel=MIDI_CHANNEL_NONE, uint32_t sampleSyncLength=0, int32_t ticksLate=0, uint32_t samplesLate=0)

void	noteOff (ModelStackWithThreeMainThings *modelStack, int velocity=DEFAULT_LIFT_VALUE)

void	writeToFile (bool savingSong, ParamManager *paramManager)

int	readFromFile (Song song, Clip clip, int32_t readAutomationUpToPos)

void	getName (char *buffer)

int	getNumChannels ()

void	unassignAllVoices ()

int8_t	modEncoderAction (ModelStackWithThreeMainThings *modelStack, int8_t offset, uint8_t whichModEncoder)

void	expressionEvent (int newValue, int whichExpressionDimension)

void	polyphonicExpressionEventOnChannelOrNote (int newValue, int whichExpressionDimension, int channelOrNoteNumber, int whichCharacteristic)

Public Member Functions inherited from NonAudioDrum
	NonAudioDrum (int newType)

bool	allowNoteTails (ModelStackWithSoundFlags *modelStack, bool disregardSampleLoop=false) final

bool	anyNoteIsOn () final

bool	hasAnyVoices () final

void	unassignAllVoices ()

bool	readDrumTagFromFile (char const *tagName)

virtual int	getNumChannels ()=0

virtual int8_t	modEncoderAction (ModelStackWithThreeMainThings *modelStack, int8_t offset, uint8_t whichModEncoder)

ModControllable *	toModControllable ()

Public Member Functions inherited from Drum
	Drum (int newType)

virtual	~Drum ()

virtual void	noteOn (ModelStackWithThreeMainThings modelStack, uint8_t velocity, Kit kit, int16_t const *mpeValues, int fromMIDIChannel=MIDI_CHANNEL_NONE, uint32_t sampleSyncLength=0, int32_t ticksLate=0, uint32_t samplesLate=0)=0

virtual void	noteOff (ModelStackWithThreeMainThings *modelStack, int velocity=DEFAULT_LIFT_VALUE)=0

virtual bool	allowNoteTails (ModelStackWithSoundFlags *modelStack, bool disregardSampleLoop=false)=0

virtual bool	anyNoteIsOn ()=0

virtual bool	hasAnyVoices ()=0

virtual void	unassignAllVoices ()=0

virtual int	loadAllSamples (bool mayActuallyReadFiles)

virtual void	prepareForHibernation ()

virtual void	prepareDrumToHaveNoActiveClip ()

virtual void	writeToFile (bool savingSong, ParamManager *paramManager)=0

virtual int	readFromFile (Song song, Clip clip, int32_t readAutomationUpToPos)=0

virtual void	drumWontBeRenderedForAWhile ()

virtual void	getName (char *buffer)=0

virtual void	choke (ModelStackWithSoundFlags *modelStack)

void	writeMIDICommandsToFile ()

bool	readDrumTagFromFile (char const *tagName)

void	recordNoteOnEarly (int velocity, bool noteTailsAllowed)

void	expressionEventPossiblyToRecord (ModelStackWithTimelineCounter *modelStack, int16_t newValue, int whichExpressionimension, int level)

virtual void	expressionEvent (int newValue, int whichExpressionimension)

void	getCombinedExpressionInputs (int16_t *combined)

virtual ModControllable *	toModControllable ()

Public Member Functions inherited from ModControllable
	ModControllable ()

virtual bool	modEncoderButtonAction (uint8_t whichModEncoder, bool on, ModelStackWithThreeMainThings *modelStack)

virtual void	modButtonAction (uint8_t whichModButton, bool on, ParamManagerForTimeline *paramManager)

virtual ModelStackWithAutoParam *	getParamFromModEncoder (int whichModEncoder, ModelStackWithThreeMainThings *modelStack, bool allowCreation=true)

virtual ModelStackWithAutoParam *	getParamFromMIDIKnob (MIDIKnob knob, ModelStackWithThreeMainThings modelStack)

virtual uint8_t *	getModKnobMode ()

virtual bool	isKit ()

virtual int	getKnobPosForNonExistentParam (int whichModEncoder, ModelStackWithAutoParam *modelStack)

virtual int	modEncoderActionForNonExistentParam (int offset, int whichModEncoder, ModelStackWithAutoParam *modelStack)

virtual bool	allowNoteTails (ModelStackWithSoundFlags *modelStack, bool disregardSampleLoop=false)

virtual void	polyphonicExpressionEventOnChannelOrNote (int newValue, int whichExpressionDimension, int channelOrNoteNumber, int whichCharacteristic)

virtual void	monophonicExpressionEvent (int newValue, int whichExpressionDimension)

Public Attributes
uint8_t	note

int8_t	noteEncoderCurrentOffset

Public Attributes inherited from NonAudioDrum
bool	state

uint8_t	lastVelocity

uint8_t	channel

int8_t	channelEncoderCurrentOffset

Public Attributes inherited from Drum
Kit *	kit

const uint8_t	type

bool	noteRowAssignedTemp

uint8_t	earlyNoteVelocity

bool	earlyNoteStillActive

bool	auditioned

uint8_t	lastMIDIChannelAuditioned

int8_t	lastExpressionInputsReceived [2][NUM_EXPRESSION_DIMENSIONS]

Drum *	next

LearnedMIDI	midiInput

LearnedMIDI	muteMIDICommand

Additional Inherited Members
Protected Member Functions inherited from NonAudioDrum
void	modChange (ModelStackWithThreeMainThings modelStack, int offset, int8_t encoderOffset, uint8_t *value, int numValues)

Constructor & Destructor Documentation

◆ MIDIDrum()

MIDIDrum::MIDIDrum ( )

Member Function Documentation

◆ expressionEvent()

void MIDIDrum::expressionEvent	(	int	newValue,
		int	whichExpressionDimension
	)

virtual

Reimplemented from Drum.

◆ getName()

void MIDIDrum::getName ( char * buffer )

virtual

Implements Drum.

◆ getNumChannels()

int MIDIDrum::getNumChannels ( )

inlinevirtual

Implements NonAudioDrum.

◆ modEncoderAction()

int8_t MIDIDrum::modEncoderAction	(	ModelStackWithThreeMainThings *	modelStack,
		int8_t	offset,
		uint8_t	whichModEncoder
	)

virtual

Reimplemented from NonAudioDrum.

◆ noteOff()

void MIDIDrum::noteOff	(	ModelStackWithThreeMainThings *	modelStack,
		int	velocity = `DEFAULT_LIFT_VALUE`
	)

virtual

Implements Drum.

◆ noteOn()

void MIDIDrum::noteOn	(	ModelStackWithThreeMainThings *	modelStack,
		uint8_t	velocity,
		Kit *	kit,
		int16_t const *	mpeValues,
		int	fromMIDIChannel = `MIDI_CHANNEL_NONE`,
		uint32_t	sampleSyncLength = `0`,
		int32_t	ticksLate = `0`,
		uint32_t	samplesLate = `0`
	)

virtual

Implements Drum.

◆ polyphonicExpressionEventOnChannelOrNote()

void MIDIDrum::polyphonicExpressionEventOnChannelOrNote	(	int	newValue,
		int	whichExpressionDimension,
		int	channelOrNoteNumber,
		int	whichCharacteristic
	)

virtual

Reimplemented from ModControllable.

◆ readFromFile()

int MIDIDrum::readFromFile	(	Song *	song,
		Clip *	clip,
		int32_t	readAutomationUpToPos
	)

virtual

Implements Drum.

◆ unassignAllVoices()

void MIDIDrum::unassignAllVoices ( )

virtual

Implements Drum.

◆ writeToFile()

void MIDIDrum::writeToFile	(	bool	savingSong,
		ParamManager *	paramManager
	)

virtual

Implements Drum.

Member Data Documentation

◆ note

uint8_t MIDIDrum::note

◆ noteEncoderCurrentOffset

int8_t MIDIDrum::noteEncoderCurrentOffset

The documentation for this class was generated from the following files:

src/MIDIDrum.h
src/MIDIDrum.cpp
