Instrument Class Reference

#include <instrument.h>

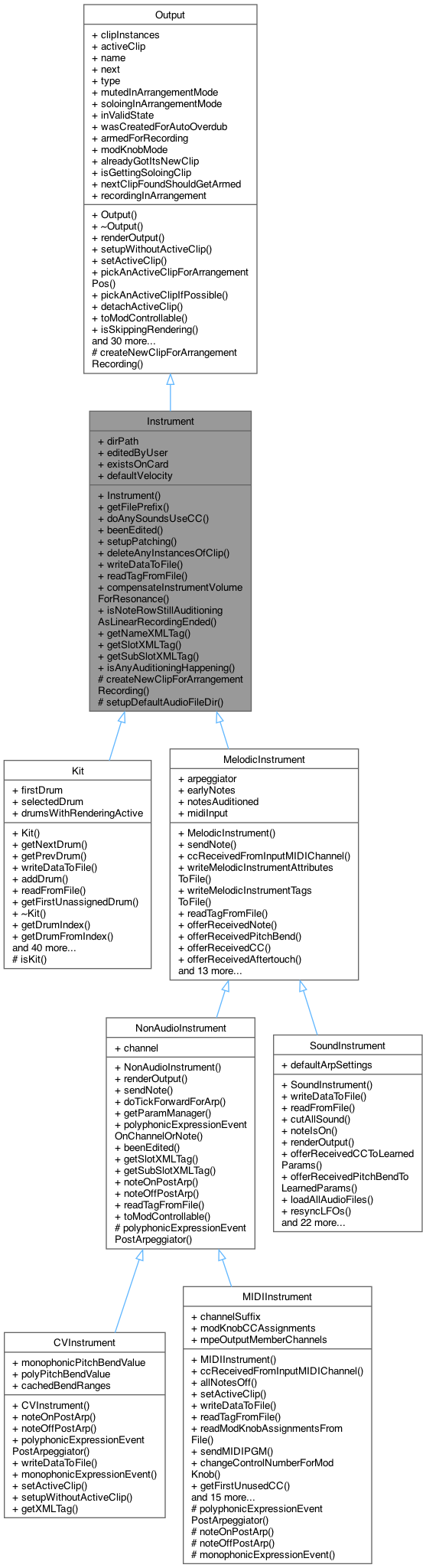

Inheritance diagram for Instrument:

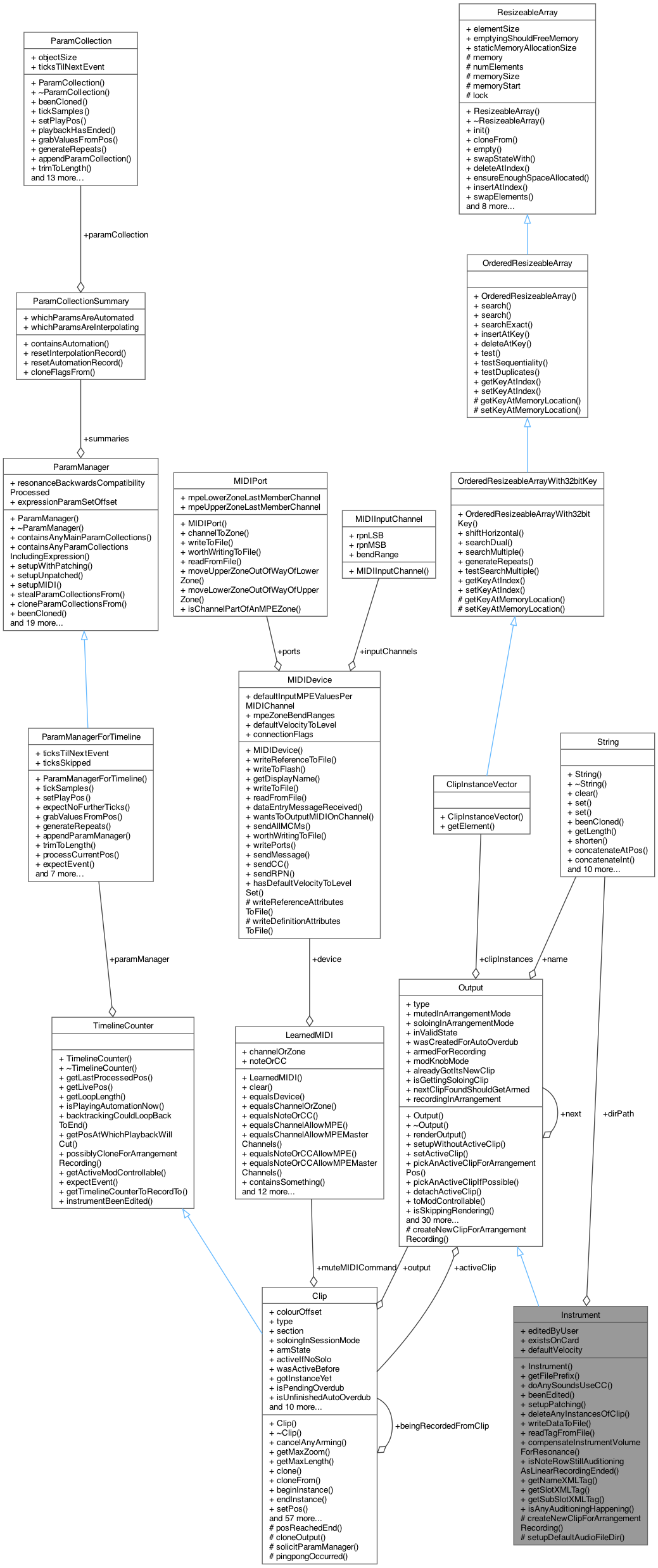

Collaboration diagram for Instrument:

Public Member Functions
	Instrument (int newType)
virtual char const *	getFilePrefix ()
virtual bool	doAnySoundsUseCC (uint8_t channel, uint8_t ccNumber, uint8_t value)
virtual void	beenEdited (bool shouldMoveToEmptySlot=true)
virtual void	setupPatching (ModelStackWithTimelineCounter *modelStack)
void	deleteAnyInstancesOfClip (InstrumentClip *clip)
bool	writeDataToFile (Clip *clipForSavingOutputOnly, Song *song)
bool	readTagFromFile (char const *tagName)
virtual void	compensateInstrumentVolumeForResonance (ModelStackWithThreeMainThings *modelStack)
virtual bool	isNoteRowStillAuditioningAsLinearRecordingEnded (NoteRow *noteRow)=0
char const *	getNameXMLTag ()
virtual char const *	getSlotXMLTag ()
virtual char const *	getSubSlotXMLTag ()
virtual bool	isAnyAuditioningHappening ()=0
Public Member Functions inherited from Output
	Output (int newType)
virtual	~Output ()
virtual void	renderOutput (ModelStack *modelStack, StereoSample *startPos, StereoSample *endPos, int numSamples, int32_t *reverbBuffer, int32_t reverbAmountAdjust, int32_t sideChainHitPending, bool shouldLimitDelayFeedback, bool isClipActive)=0
virtual void	setupWithoutActiveClip (ModelStack *modelStack)
virtual bool	setActiveClip (ModelStackWithTimelineCounter *modelStack, int maySendMIDIPGMs=PGM_CHANGE_SEND_ONCE)
void	pickAnActiveClipForArrangementPos (ModelStack *modelStack, int arrangementPos, int maySendMIDIPGMs)
void	pickAnActiveClipIfPossible (ModelStack *modelStack, bool searchSessionClipsIfNeeded=true, int maySendMIDIPGMs=PGM_CHANGE_SEND_ONCE, bool setupWithoutActiveClipIfNeeded=true)
void	detachActiveClip (Song *currentSong)
virtual ModControllable *	toModControllable ()
virtual bool	isSkippingRendering ()
bool	clipHasInstance (Clip *clip)
void	clipLengthChanged (Clip *clip, int32_t oldLength)
virtual void	cutAllSound ()
virtual void	getThingWithMostReverb (Sound **soundWithMostReverb, ParamManager **paramManagerWithMostReverb, GlobalEffectableForClip **globalEffectableWithMostReverb, int32_t *highestReverbAmountFound)
virtual bool	offerReceivedPitchBendToLearnedParams (MIDIDevice *fromDevice, uint8_t channel, uint8_t data1, uint8_t data2, ModelStackWithTimelineCounter *modelStack)
virtual void	offerReceivedCCToLearnedParams (MIDIDevice *fromDevice, uint8_t channel, uint8_t ccNumber, uint8_t value, ModelStackWithTimelineCounter *modelStack)
virtual int32_t	doTickForwardForArp (ModelStack *modelStack, int32_t currentPos)
void	endAnyArrangementRecording (Song *song, int32_t actualEndPos, uint32_t timeRemainder)
virtual bool	wantsToBeginArrangementRecording ()
virtual int	readFromFile (Song *song, Clip *clip, int32_t readAutomationUpToPos)
virtual bool	readTagFromFile (char const *tagName)
void	writeToFile (Clip *clipForSavingOutputOnly, Song *song)
virtual bool	writeDataToFile (Clip *clipForSavingOutputOnly, Song *song)
virtual int	loadAllAudioFiles (bool mayActuallyReadFiles)
virtual void	loadCrucialAudioFilesOnly ()
virtual void	resyncLFOs ()
virtual void	sendMIDIPGM ()
virtual void	deleteBackedUpParamManagers (Song *song)
virtual void	prepareForHibernationOrDeletion ()
virtual char const *	getXMLTag ()=0
virtual ParamManager *	getParamManager (Song *song)
virtual char const *	getNameXMLTag ()
virtual void	offerReceivedNote (ModelStackWithTimelineCounter *modelStackWithTimelineCounter, MIDIDevice *fromDevice, bool on, int channel, int note, int velocity, bool shouldRecordNotes, bool *doingMidiThru)
virtual void	offerReceivedPitchBend (ModelStackWithTimelineCounter *modelStackWithTimelineCounter, MIDIDevice *fromDevice, uint8_t channel, uint8_t data1, uint8_t data2, bool *doingMidiThru)
virtual void	offerReceivedCC (ModelStackWithTimelineCounter *modelStackWithTimelineCounter, MIDIDevice *fromDevice, uint8_t channel, uint8_t ccNumber, uint8_t value, bool *doingMidiThru)
virtual void	offerReceivedAftertouch (ModelStackWithTimelineCounter *modelStackWithTimelineCounter, MIDIDevice *fromDevice, int channel, int value, int noteCode, bool *doingMidiThru)
virtual void	stopAnyAuditioning (ModelStack *modelStack)
virtual void	offerBendRangeUpdate (ModelStack *modelStack, MIDIDevice *device, int channelOrZone, int whichBendRange, int bendSemitones)
int	possiblyBeginArrangementRecording (Song *song, int newPos)
void	endArrangementPlayback (Song *song, int32_t actualEndPos, uint32_t timeRemainder)

Public Attributes
String	dirPath
bool	editedByUser
bool	existsOnCard
uint8_t	defaultVelocity
Public Attributes inherited from Output
ClipInstanceVector	clipInstances
Clip *	activeClip
String	name
Output *	next
const uint8_t	type
bool	mutedInArrangementMode
bool	soloingInArrangementMode
bool	inValidState
bool	wasCreatedForAutoOverdub
bool	armedForRecording
uint8_t	modKnobMode
bool	alreadyGotItsNewClip
bool	isGettingSoloingClip
bool	nextClipFoundShouldGetArmed
bool	recordingInArrangement

Protected Member Functions
Clip *	createNewClipForArrangementRecording (ModelStack *modelStack) final
int	setupDefaultAudioFileDir ()
virtual Clip *	createNewClipForArrangementRecording (ModelStack *modelStack)=0

Constructor & Destructor Documentation

Instrument()

Instrument::Instrument

(

int

newType

)

Member Function Documentation

beenEdited()

void Instrument::beenEdited ( bool  shouldMoveToEmptySlot = true )

virtual

Reimplemented in NonAudioInstrument, and SoundInstrument.

compensateInstrumentVolumeForResonance()

virtual void Instrument::compensateInstrumentVolumeForResonance ( ModelStackWithThreeMainThings *  modelStack )

inlinevirtual

Reimplemented in SoundInstrument.

createNewClipForArrangementRecording()

Clip * Instrument::createNewClipForArrangementRecording ( ModelStack *  modelStack )

finalprotectedvirtual

Implements Output.

deleteAnyInstancesOfClip()

void Instrument::deleteAnyInstancesOfClip

(

InstrumentClip *

clip

)

doAnySoundsUseCC()

virtual bool Instrument::doAnySoundsUseCC ( uint8_t  channel, uint8_t  ccNumber, uint8_t  value  )

inlinevirtual

getFilePrefix()

virtual char const * Instrument::getFilePrefix ( )

inlinevirtual

Reimplemented in Kit, and SoundInstrument.

getNameXMLTag()

char const * Instrument::getNameXMLTag ( )

inlinevirtual

Reimplemented from Output.

getSlotXMLTag()

virtual char const * Instrument::getSlotXMLTag ( )

inlinevirtual

Reimplemented in MIDIInstrument, and NonAudioInstrument.

getSubSlotXMLTag()

virtual char const * Instrument::getSubSlotXMLTag ( )

inlinevirtual

Reimplemented in MIDIInstrument, and NonAudioInstrument.

isAnyAuditioningHappening()

virtual bool Instrument::isAnyAuditioningHappening ( )

pure virtual

Implemented in Kit, and MelodicInstrument.

isNoteRowStillAuditioningAsLinearRecordingEnded()

virtual bool Instrument::isNoteRowStillAuditioningAsLinearRecordingEnded ( NoteRow *  noteRow )

pure virtual

Implemented in Kit, and MelodicInstrument.

readTagFromFile()

bool Instrument::readTagFromFile ( char const *  tagName )

virtual

Reimplemented from Output.

Reimplemented in MelodicInstrument, MIDIInstrument, NonAudioInstrument, and SoundInstrument.

setupDefaultAudioFileDir()

int Instrument::setupDefaultAudioFileDir ( )

protected

setupPatching()

virtual void Instrument::setupPatching ( ModelStackWithTimelineCounter *  modelStack )

inlinevirtual

Reimplemented in Kit, and SoundInstrument.

writeDataToFile()

bool Instrument::writeDataToFile ( Clip *  clipForSavingOutputOnly, Song *  song  )

virtual

Reimplemented from Output.

Reimplemented in Kit, MIDIInstrument, and SoundInstrument.

Member Data Documentation

defaultVelocity

uint8_t Instrument::defaultVelocity

dirPath

String Instrument::dirPath

editedByUser

bool Instrument::editedByUser

existsOnCard

bool Instrument::existsOnCard

---

The documentation for this class was generated from the following files:

• src/instrument.h
• src/instrument.cpp
