#include <GlobalEffectableForClip.h>

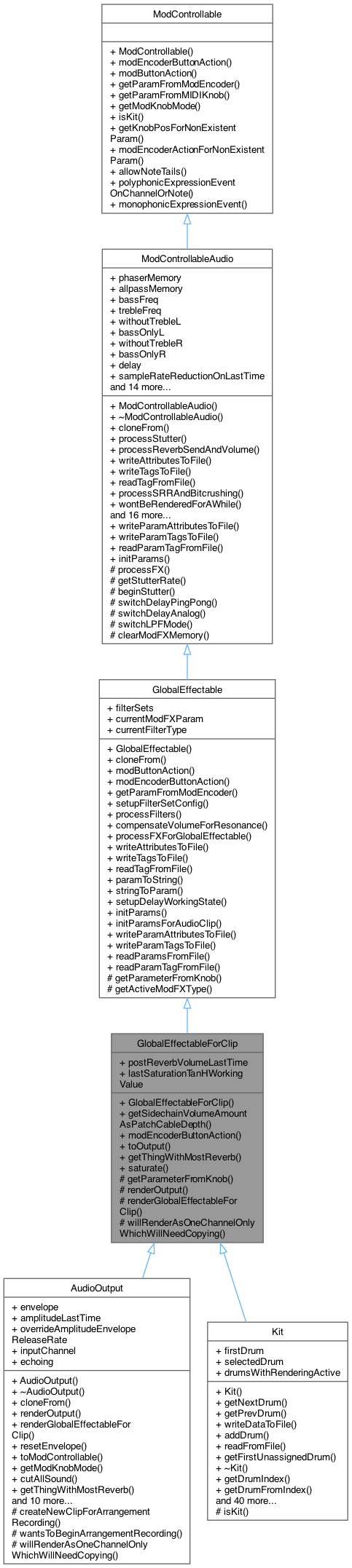

Inheritance diagram for GlobalEffectableForClip:

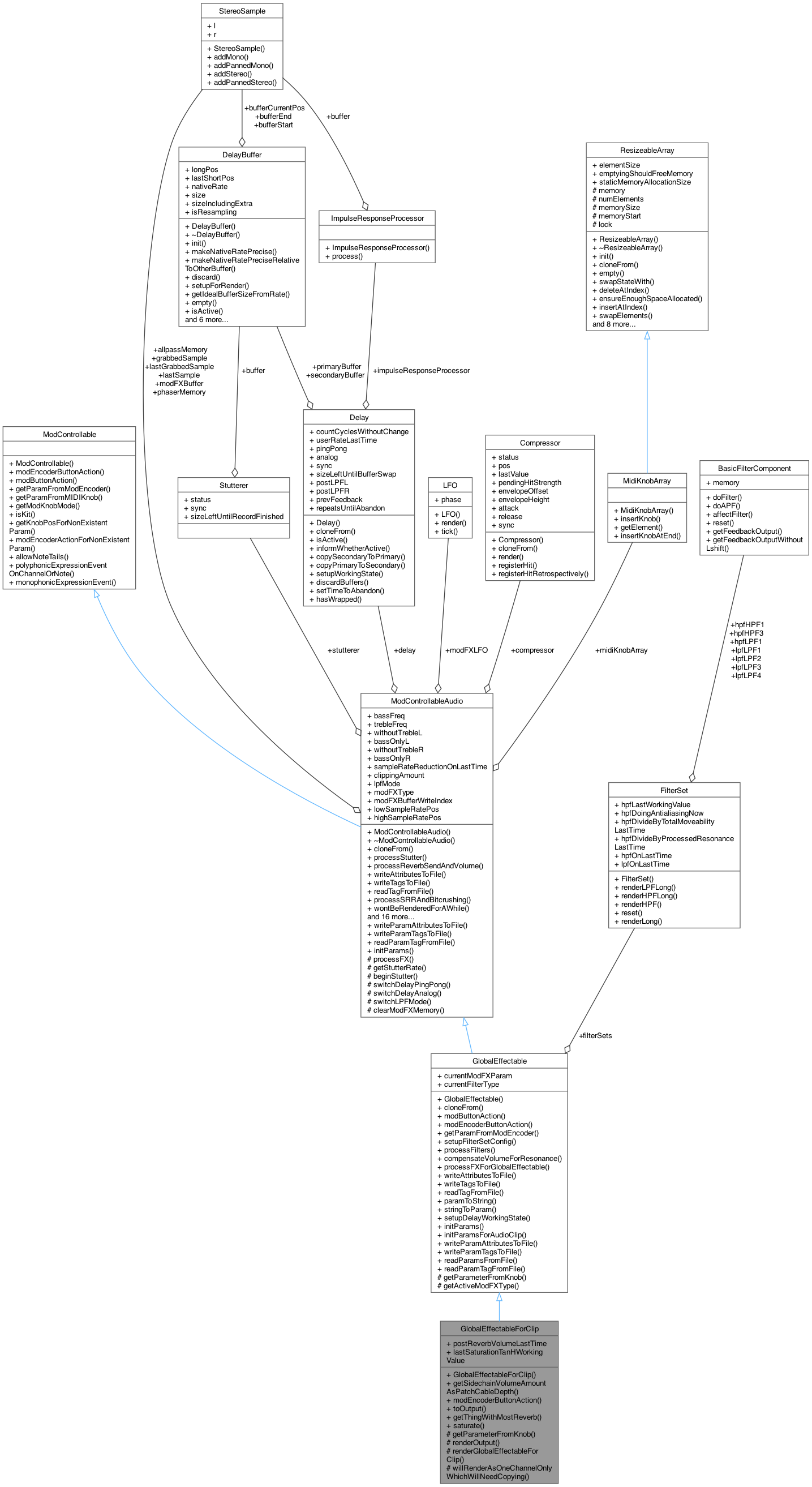

Collaboration diagram for GlobalEffectableForClip:

Public Member Functions
	GlobalEffectableForClip ()

int32_t	getSidechainVolumeAmountAsPatchCableDepth (ParamManager *paramManager)

bool	modEncoderButtonAction (uint8_t whichModEncoder, bool on, ModelStackWithThreeMainThings *modelStack) final

virtual Output *	toOutput ()=0

void	getThingWithMostReverb (Clip activeClip, Sound soundWithMostReverb, ParamManager paramManagerWithMostReverb, GlobalEffectableForClip globalEffectableWithMostReverb, int32_t highestReverbAmountFound)

void	saturate (int32_t data, uint32_t workingValue)

Public Member Functions inherited from GlobalEffectable
	GlobalEffectable ()

void	cloneFrom (ModControllableAudio *other)

void	modButtonAction (uint8_t whichModButton, bool on, ParamManagerForTimeline *paramManager)

bool	modEncoderButtonAction (uint8_t whichModEncoder, bool on, ModelStackWithThreeMainThings *modelStack)

ModelStackWithAutoParam *	getParamFromModEncoder (int whichModEncoder, ModelStackWithThreeMainThings *modelStack, bool allowCreation=true)

void	setupFilterSetConfig (FilterSetConfig filterSetConfig, int32_t postFXVolume, ParamManager *paramManager)

void	processFilters (StereoSample buffer, int numSamples, FilterSetConfig filterSetConfig)

void	compensateVolumeForResonance (ParamManagerForTimeline *paramManager)

void	processFXForGlobalEffectable (StereoSample inputBuffer, int numSamples, int32_t postFXVolume, ParamManager paramManager, DelayWorkingState delayWorkingState, int analogDelaySaturationAmount)

void	writeAttributesToFile (bool writeToFile)

void	writeTagsToFile (ParamManager *paramManager, bool writeToFile)

int	readTagFromFile (char const tagName, ParamManagerForTimeline paramManager, int32_t readAutomationUpToPos, Song *song)

char const *	paramToString (uint8_t param)

int	stringToParam (char const *string)

void	setupDelayWorkingState (DelayWorkingState delayWorkingState, ParamManager paramManager, bool shouldLimitDelayFeedback=false)

Public Member Functions inherited from ModControllableAudio
	ModControllableAudio ()

virtual	~ModControllableAudio ()

virtual void	cloneFrom (ModControllableAudio *other)

void	processStutter (StereoSample buffer, int numSamples, ParamManager paramManager)

void	processReverbSendAndVolume (StereoSample buffer, int numSamples, int32_t reverbBuffer, int32_t postFXVolume, int32_t postReverbVolume, int32_t reverbSendAmount, int32_t pan=0, bool doAmplitudeIncrement=false, int32_t amplitudeIncrement=0)

void	writeAttributesToFile ()

void	writeTagsToFile ()

int	readTagFromFile (char const tagName, ParamManagerForTimeline paramManager, int32_t readAutomationUpToPos, Song *song)

void	processSRRAndBitcrushing (StereoSample buffer, int numSamples, int32_t postFXVolume, ParamManager *paramManager)

void	wontBeRenderedForAWhile ()

void	endStutter (ParamManagerForTimeline *paramManager)

virtual bool	setModFXType (int newType)

bool	offerReceivedCCToLearnedParams (MIDIDevice fromDevice, uint8_t channel, uint8_t ccNumber, uint8_t value, ModelStackWithTimelineCounter modelStack, int noteRowIndex=-1)

bool	offerReceivedPitchBendToLearnedParams (MIDIDevice fromDevice, uint8_t channel, uint8_t data1, uint8_t data2, ModelStackWithTimelineCounter modelStack, int noteRowIndex=-1)

virtual bool	learnKnob (MIDIDevice fromDevice, ParamDescriptor paramDescriptor, uint8_t whichKnob, uint8_t modKnobMode, uint8_t midiChannel, Song song)

bool	unlearnKnobs (ParamDescriptor paramDescriptor, Song *song)

virtual void	ensureInaccessibleParamPresetValuesWithoutKnobsAreZero (Song *song)

virtual char const *	paramToString (uint8_t param)

virtual int	stringToParam (char const *string)

bool	isBitcrushingEnabled (ParamManager *paramManager)

bool	isSRREnabled (ParamManager *paramManager)

bool	hasBassAdjusted (ParamManager *paramManager)

bool	hasTrebleAdjusted (ParamManager *paramManager)

ModelStackWithAutoParam *	getParamFromMIDIKnob (MIDIKnob knob, ModelStackWithThreeMainThings modelStack)

int	buttonAction (int x, int y, bool on, ModelStackWithThreeMainThings *modelStack)

ModelStackWithAutoParam *	getParamFromModEncoder (int whichModEncoder, ModelStackWithThreeMainThings *modelStack, bool allowCreation)

Public Member Functions inherited from ModControllable
	ModControllable ()

virtual bool	modEncoderButtonAction (uint8_t whichModEncoder, bool on, ModelStackWithThreeMainThings *modelStack)

virtual void	modButtonAction (uint8_t whichModButton, bool on, ParamManagerForTimeline *paramManager)

virtual ModelStackWithAutoParam *	getParamFromModEncoder (int whichModEncoder, ModelStackWithThreeMainThings *modelStack, bool allowCreation=true)

virtual ModelStackWithAutoParam *	getParamFromMIDIKnob (MIDIKnob knob, ModelStackWithThreeMainThings modelStack)

virtual uint8_t *	getModKnobMode ()

virtual bool	isKit ()

virtual int	getKnobPosForNonExistentParam (int whichModEncoder, ModelStackWithAutoParam *modelStack)

virtual int	modEncoderActionForNonExistentParam (int offset, int whichModEncoder, ModelStackWithAutoParam *modelStack)

virtual bool	allowNoteTails (ModelStackWithSoundFlags *modelStack, bool disregardSampleLoop=false)

virtual void	polyphonicExpressionEventOnChannelOrNote (int newValue, int whichExpressionDimension, int channelOrNoteNumber, int whichCharacteristic)

virtual void	monophonicExpressionEvent (int newValue, int whichExpressionDimension)

Public Attributes
int32_t	postReverbVolumeLastTime

uint32_t	lastSaturationTanHWorkingValue [2]

Public Attributes inherited from GlobalEffectable
FilterSet	filterSets [2]

uint8_t	currentModFXParam

uint8_t	currentFilterType

Public Attributes inherited from ModControllableAudio
StereoSample	phaserMemory

StereoSample	allpassMemory [PHASER_NUM_ALLPASS_FILTERS]

int32_t	bassFreq

int32_t	trebleFreq

int32_t	withoutTrebleL

int32_t	bassOnlyL

int32_t	withoutTrebleR

int32_t	bassOnlyR

Delay	delay

bool	sampleRateReductionOnLastTime

uint8_t	clippingAmount

uint8_t	lpfMode

uint8_t	modFXType

StereoSample *	modFXBuffer

uint16_t	modFXBufferWriteIndex

LFO	modFXLFO

Stutterer	stutterer

uint32_t	lowSampleRatePos

uint32_t	highSampleRatePos

StereoSample	lastSample

StereoSample	grabbedSample

StereoSample	lastGrabbedSample

Compressor	compressor

MidiKnobArray	midiKnobArray

Protected Member Functions
int	getParameterFromKnob (int whichModEncoder) final

void	renderOutput (ModelStackWithTimelineCounter modelStack, ParamManager paramManagerForClip, StereoSample outputBuffer, int numSamples, int32_t reverbBuffer, int32_t reverbAmountAdjust, int32_t sideChainHitPending, bool shouldLimitDelayFeedback, bool isClipActive, int outputType, int analogDelaySaturationAmount)

virtual void	renderGlobalEffectableForClip (ModelStackWithTimelineCounter modelStack, StereoSample globalEffectableBuffer, int32_t bufferToTransferTo, int numSamples, int32_t reverbBuffer, int32_t reverbAmountAdjust, int32_t sideChainHitPending, bool shouldLimitDelayFeedback, bool isClipActive, int32_t pitchAdjust, int32_t amplitudeAtStart, int32_t amplitudeAtEnd)=0

virtual bool	willRenderAsOneChannelOnlyWhichWillNeedCopying ()

Protected Member Functions inherited from GlobalEffectable
virtual int	getParameterFromKnob (int whichModEncoder)

int	getActiveModFXType (ParamManager *paramManager)

Protected Member Functions inherited from ModControllableAudio
void	processFX (StereoSample buffer, int numSamples, int modFXType, int32_t modFXRate, int32_t modFXDepth, DelayWorkingState delayWorkingState, int32_t postFXVolume, ParamManager paramManager, int analogDelaySaturationAmount)

int32_t	getStutterRate (ParamManager *paramManager)

void	beginStutter (ParamManagerForTimeline *paramManager)

void	switchDelayPingPong ()

void	switchDelayAnalog ()

void	switchLPFMode ()

void	clearModFXMemory ()

Additional Inherited Members
Static Public Member Functions inherited from GlobalEffectable
static void	initParams (ParamManager *paramManager)

static void	initParamsForAudioClip (ParamManagerForTimeline *paramManager)

static void	writeParamAttributesToFile (ParamManager paramManager, bool writeAutomation, int32_t valuesForOverride=NULL)

static void	writeParamTagsToFile (ParamManager paramManager, bool writeAutomation, int32_t valuesForOverride=NULL)

static void	readParamsFromFile (ParamManagerForTimeline *paramManager, int32_t readAutomationUpToPos)

static bool	readParamTagFromFile (char const tagName, ParamManagerForTimeline paramManager, int32_t readAutomationUpToPos)

Static Public Member Functions inherited from ModControllableAudio
static void	writeParamAttributesToFile (ParamManager paramManager, bool writeAutomation, int32_t valuesForOverride=NULL)

static void	writeParamTagsToFile (ParamManager paramManager, bool writeAutomation, int32_t valuesForOverride=NULL)

static bool	readParamTagFromFile (char const tagName, ParamManagerForTimeline paramManager, int32_t readAutomationUpToPos)

static void	initParams (ParamManager *paramManager)

Constructor & Destructor Documentation

◆ GlobalEffectableForClip()

GlobalEffectableForClip::GlobalEffectableForClip ( )

Member Function Documentation

◆ getParameterFromKnob()

int GlobalEffectableForClip::getParameterFromKnob ( int whichModEncoder )

finalprotectedvirtual

Reimplemented from GlobalEffectable.

◆ getSidechainVolumeAmountAsPatchCableDepth()

int32_t GlobalEffectableForClip::getSidechainVolumeAmountAsPatchCableDepth ( ParamManager * paramManager )

◆ getThingWithMostReverb()

void GlobalEffectableForClip::getThingWithMostReverb	(	Clip *	activeClip,
		Sound **	soundWithMostReverb,
		ParamManager **	paramManagerWithMostReverb,
		GlobalEffectableForClip **	globalEffectableWithMostReverb,
		int32_t *	highestReverbAmountFound
	)

◆ modEncoderButtonAction()

bool GlobalEffectableForClip::modEncoderButtonAction	(	uint8_t	whichModEncoder,
		bool	on,
		ModelStackWithThreeMainThings *	modelStack
	)

finalvirtual

Reimplemented from GlobalEffectable.

◆ renderGlobalEffectableForClip()

virtual void GlobalEffectableForClip::renderGlobalEffectableForClip	(	ModelStackWithTimelineCounter *	modelStack,
		StereoSample *	globalEffectableBuffer,
		int32_t *	bufferToTransferTo,
		int	numSamples,
		int32_t *	reverbBuffer,
		int32_t	reverbAmountAdjust,
		int32_t	sideChainHitPending,
		bool	shouldLimitDelayFeedback,
		bool	isClipActive,
		int32_t	pitchAdjust,
		int32_t	amplitudeAtStart,
		int32_t	amplitudeAtEnd
	)

protectedpure virtual

Implemented in AudioOutput, and Kit.

◆ renderOutput()

void GlobalEffectableForClip::renderOutput	(	ModelStackWithTimelineCounter *	modelStack,
		ParamManager *	paramManagerForClip,
		StereoSample *	outputBuffer,
		int	numSamples,
		int32_t *	reverbBuffer,
		int32_t	reverbAmountAdjust,
		int32_t	sideChainHitPending,
		bool	shouldLimitDelayFeedback,
		bool	isClipActive,
		int	outputType,
		int	analogDelaySaturationAmount
	)

protected

◆ saturate()

void GlobalEffectableForClip::saturate	(	int32_t *	data,
		uint32_t *	workingValue
	)

inline

◆ toOutput()

virtual Output * GlobalEffectableForClip::toOutput ( )

pure virtual

Implemented in AudioOutput, and Kit.

◆ willRenderAsOneChannelOnlyWhichWillNeedCopying()

virtual bool GlobalEffectableForClip::willRenderAsOneChannelOnlyWhichWillNeedCopying ( )

inlineprotectedvirtual

Reimplemented in AudioOutput.

Member Data Documentation

◆ lastSaturationTanHWorkingValue

uint32_t GlobalEffectableForClip::lastSaturationTanHWorkingValue[2]

◆ postReverbVolumeLastTime

int32_t GlobalEffectableForClip::postReverbVolumeLastTime

The documentation for this class was generated from the following files:

src/GlobalEffectableForClip.h
src/GlobalEffectableForClip.cpp
