GlobalEffectable Class Reference

#include <GlobalEffectable.h>

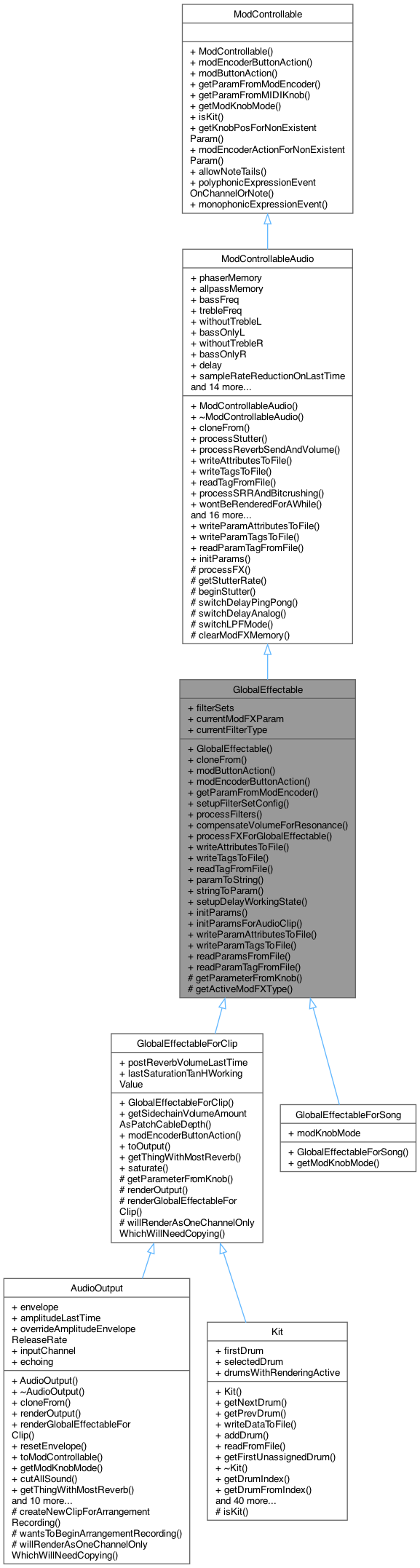

Inheritance diagram for GlobalEffectable:

Collaboration diagram for GlobalEffectable:

Public Member Functions
	GlobalEffectable ()
void	cloneFrom (ModControllableAudio *other)
void	modButtonAction (uint8_t whichModButton, bool on, ParamManagerForTimeline *paramManager)
bool	modEncoderButtonAction (uint8_t whichModEncoder, bool on, ModelStackWithThreeMainThings *modelStack)
ModelStackWithAutoParam *	getParamFromModEncoder (int whichModEncoder, ModelStackWithThreeMainThings *modelStack, bool allowCreation=true)
void	setupFilterSetConfig (FilterSetConfig *filterSetConfig, int32_t *postFXVolume, ParamManager *paramManager)
void	processFilters (StereoSample *buffer, int numSamples, FilterSetConfig *filterSetConfig)
void	compensateVolumeForResonance (ParamManagerForTimeline *paramManager)
void	processFXForGlobalEffectable (StereoSample *inputBuffer, int numSamples, int32_t *postFXVolume, ParamManager *paramManager, DelayWorkingState *delayWorkingState, int analogDelaySaturationAmount)
void	writeAttributesToFile (bool writeToFile)
void	writeTagsToFile (ParamManager *paramManager, bool writeToFile)
int	readTagFromFile (char const *tagName, ParamManagerForTimeline *paramManager, int32_t readAutomationUpToPos, Song *song)
char const *	paramToString (uint8_t param)
int	stringToParam (char const *string)
void	setupDelayWorkingState (DelayWorkingState *delayWorkingState, ParamManager *paramManager, bool shouldLimitDelayFeedback=false)
Public Member Functions inherited from ModControllableAudio
	ModControllableAudio ()
virtual	~ModControllableAudio ()
virtual void	cloneFrom (ModControllableAudio *other)
void	processStutter (StereoSample *buffer, int numSamples, ParamManager *paramManager)
void	processReverbSendAndVolume (StereoSample *buffer, int numSamples, int32_t *reverbBuffer, int32_t postFXVolume, int32_t postReverbVolume, int32_t reverbSendAmount, int32_t pan=0, bool doAmplitudeIncrement=false, int32_t amplitudeIncrement=0)
void	writeAttributesToFile ()
void	writeTagsToFile ()
int	readTagFromFile (char const *tagName, ParamManagerForTimeline *paramManager, int32_t readAutomationUpToPos, Song *song)
void	processSRRAndBitcrushing (StereoSample *buffer, int numSamples, int32_t *postFXVolume, ParamManager *paramManager)
void	wontBeRenderedForAWhile ()
void	endStutter (ParamManagerForTimeline *paramManager)
virtual bool	setModFXType (int newType)
bool	offerReceivedCCToLearnedParams (MIDIDevice *fromDevice, uint8_t channel, uint8_t ccNumber, uint8_t value, ModelStackWithTimelineCounter *modelStack, int noteRowIndex=-1)
bool	offerReceivedPitchBendToLearnedParams (MIDIDevice *fromDevice, uint8_t channel, uint8_t data1, uint8_t data2, ModelStackWithTimelineCounter *modelStack, int noteRowIndex=-1)
virtual bool	learnKnob (MIDIDevice *fromDevice, ParamDescriptor paramDescriptor, uint8_t whichKnob, uint8_t modKnobMode, uint8_t midiChannel, Song *song)
bool	unlearnKnobs (ParamDescriptor paramDescriptor, Song *song)
virtual void	ensureInaccessibleParamPresetValuesWithoutKnobsAreZero (Song *song)
virtual char const *	paramToString (uint8_t param)
virtual int	stringToParam (char const *string)
bool	isBitcrushingEnabled (ParamManager *paramManager)
bool	isSRREnabled (ParamManager *paramManager)
bool	hasBassAdjusted (ParamManager *paramManager)
bool	hasTrebleAdjusted (ParamManager *paramManager)
ModelStackWithAutoParam *	getParamFromMIDIKnob (MIDIKnob *knob, ModelStackWithThreeMainThings *modelStack)
int	buttonAction (int x, int y, bool on, ModelStackWithThreeMainThings *modelStack)
ModelStackWithAutoParam *	getParamFromModEncoder (int whichModEncoder, ModelStackWithThreeMainThings *modelStack, bool allowCreation)
Public Member Functions inherited from ModControllable
	ModControllable ()
virtual bool	modEncoderButtonAction (uint8_t whichModEncoder, bool on, ModelStackWithThreeMainThings *modelStack)
virtual void	modButtonAction (uint8_t whichModButton, bool on, ParamManagerForTimeline *paramManager)
virtual ModelStackWithAutoParam *	getParamFromModEncoder (int whichModEncoder, ModelStackWithThreeMainThings *modelStack, bool allowCreation=true)
virtual ModelStackWithAutoParam *	getParamFromMIDIKnob (MIDIKnob *knob, ModelStackWithThreeMainThings *modelStack)
virtual uint8_t *	getModKnobMode ()
virtual bool	isKit ()
virtual int	getKnobPosForNonExistentParam (int whichModEncoder, ModelStackWithAutoParam *modelStack)
virtual int	modEncoderActionForNonExistentParam (int offset, int whichModEncoder, ModelStackWithAutoParam *modelStack)
virtual bool	allowNoteTails (ModelStackWithSoundFlags *modelStack, bool disregardSampleLoop=false)
virtual void	polyphonicExpressionEventOnChannelOrNote (int newValue, int whichExpressionDimension, int channelOrNoteNumber, int whichCharacteristic)
virtual void	monophonicExpressionEvent (int newValue, int whichExpressionDimension)

Static Public Member Functions
static void	initParams (ParamManager *paramManager)
static void	initParamsForAudioClip (ParamManagerForTimeline *paramManager)
static void	writeParamAttributesToFile (ParamManager *paramManager, bool writeAutomation, int32_t *valuesForOverride=NULL)
static void	writeParamTagsToFile (ParamManager *paramManager, bool writeAutomation, int32_t *valuesForOverride=NULL)
static void	readParamsFromFile (ParamManagerForTimeline *paramManager, int32_t readAutomationUpToPos)
static bool	readParamTagFromFile (char const *tagName, ParamManagerForTimeline *paramManager, int32_t readAutomationUpToPos)
Static Public Member Functions inherited from ModControllableAudio
static void	writeParamAttributesToFile (ParamManager *paramManager, bool writeAutomation, int32_t *valuesForOverride=NULL)
static void	writeParamTagsToFile (ParamManager *paramManager, bool writeAutomation, int32_t *valuesForOverride=NULL)
static bool	readParamTagFromFile (char const *tagName, ParamManagerForTimeline *paramManager, int32_t readAutomationUpToPos)
static void	initParams (ParamManager *paramManager)

Public Attributes
FilterSet	filterSets [2]
uint8_t	currentModFXParam
uint8_t	currentFilterType
Public Attributes inherited from ModControllableAudio
StereoSample	phaserMemory
StereoSample	allpassMemory [PHASER_NUM_ALLPASS_FILTERS]
int32_t	bassFreq
int32_t	trebleFreq
int32_t	withoutTrebleL
int32_t	bassOnlyL
int32_t	withoutTrebleR
int32_t	bassOnlyR
Delay	delay
bool	sampleRateReductionOnLastTime
uint8_t	clippingAmount
uint8_t	lpfMode
uint8_t	modFXType
StereoSample *	modFXBuffer
uint16_t	modFXBufferWriteIndex
LFO	modFXLFO
Stutterer	stutterer
uint32_t	lowSampleRatePos
uint32_t	highSampleRatePos
StereoSample	lastSample
StereoSample	grabbedSample
StereoSample	lastGrabbedSample
Compressor	compressor
MidiKnobArray	midiKnobArray

Protected Member Functions
virtual int	getParameterFromKnob (int whichModEncoder)
int	getActiveModFXType (ParamManager *paramManager)
Protected Member Functions inherited from ModControllableAudio
void	processFX (StereoSample *buffer, int numSamples, int modFXType, int32_t modFXRate, int32_t modFXDepth, DelayWorkingState *delayWorkingState, int32_t *postFXVolume, ParamManager *paramManager, int analogDelaySaturationAmount)
int32_t	getStutterRate (ParamManager *paramManager)
void	beginStutter (ParamManagerForTimeline *paramManager)
void	switchDelayPingPong ()
void	switchDelayAnalog ()
void	switchLPFMode ()
void	clearModFXMemory ()

Constructor & Destructor Documentation

GlobalEffectable()

GlobalEffectable::GlobalEffectable

(

)

Member Function Documentation

cloneFrom()

void GlobalEffectable::cloneFrom ( ModControllableAudio *  other )

virtual

Reimplemented from ModControllableAudio.

compensateVolumeForResonance()

void GlobalEffectable::compensateVolumeForResonance

(

ParamManagerForTimeline *

paramManager

)

getActiveModFXType()

int GlobalEffectable::getActiveModFXType ( ParamManager *  paramManager )

protected

getParameterFromKnob()

int GlobalEffectable::getParameterFromKnob ( int  whichModEncoder )

protectedvirtual

Reimplemented in GlobalEffectableForClip.

getParamFromModEncoder()

ModelStackWithAutoParam * GlobalEffectable::getParamFromModEncoder ( int  whichModEncoder, ModelStackWithThreeMainThings *  modelStack, bool  allowCreation = true  )

virtual

Reimplemented from ModControllable.

initParams()

void GlobalEffectable::initParams ( ParamManager *  paramManager )

static

initParamsForAudioClip()

void GlobalEffectable::initParamsForAudioClip ( ParamManagerForTimeline *  paramManager )

static

modButtonAction()

void GlobalEffectable::modButtonAction ( uint8_t  whichModButton, bool  on, ParamManagerForTimeline *  paramManager  )

virtual

Reimplemented from ModControllable.

modEncoderButtonAction()

bool GlobalEffectable::modEncoderButtonAction ( uint8_t  whichModEncoder, bool  on, ModelStackWithThreeMainThings *  modelStack  )

virtual

Reimplemented from ModControllable.

Reimplemented in GlobalEffectableForClip.

paramToString()

char const * GlobalEffectable::paramToString ( uint8_t  param )

virtual

Reimplemented from ModControllableAudio.

processFilters()

void GlobalEffectable::processFilters	(	StereoSample *	buffer,
		int	numSamples,
		FilterSetConfig *	filterSetConfig
	)

processFXForGlobalEffectable()

void GlobalEffectable::processFXForGlobalEffectable	(	StereoSample *	inputBuffer,
		int	numSamples,
		int32_t *	postFXVolume,
		ParamManager *	paramManager,
		DelayWorkingState *	delayWorkingState,
		int	analogDelaySaturationAmount
	)

readParamsFromFile()

void GlobalEffectable::readParamsFromFile ( ParamManagerForTimeline *  paramManager, int32_t  readAutomationUpToPos  )

static

readParamTagFromFile()

bool GlobalEffectable::readParamTagFromFile ( char const *  tagName, ParamManagerForTimeline *  paramManager, int32_t  readAutomationUpToPos  )

static

readTagFromFile()

int GlobalEffectable::readTagFromFile	(	char const *	tagName,
		ParamManagerForTimeline *	paramManager,
		int32_t	readAutomationUpToPos,
		Song *	song
	)

setupDelayWorkingState()

void GlobalEffectable::setupDelayWorkingState	(	DelayWorkingState *	delayWorkingState,
		ParamManager *	paramManager,
		bool	shouldLimitDelayFeedback = false
	)

setupFilterSetConfig()

void GlobalEffectable::setupFilterSetConfig	(	FilterSetConfig *	filterSetConfig,
		int32_t *	postFXVolume,
		ParamManager *	paramManager
	)

stringToParam()

int GlobalEffectable::stringToParam ( char const *  string )

virtual

Reimplemented from ModControllableAudio.

writeAttributesToFile()

void GlobalEffectable::writeAttributesToFile

(

bool

writeToFile

)

writeParamAttributesToFile()

void GlobalEffectable::writeParamAttributesToFile ( ParamManager *  paramManager, bool  writeAutomation, int32_t *  valuesForOverride = NULL  )

static

writeParamTagsToFile()

void GlobalEffectable::writeParamTagsToFile ( ParamManager *  paramManager, bool  writeAutomation, int32_t *  valuesForOverride = NULL  )

static

writeTagsToFile()

void GlobalEffectable::writeTagsToFile	(	ParamManager *	paramManager,
		bool	writeToFile
	)

Member Data Documentation

currentFilterType

uint8_t GlobalEffectable::currentFilterType

currentModFXParam

uint8_t GlobalEffectable::currentModFXParam

filterSets

FilterSet GlobalEffectable::filterSets[2]

---

The documentation for this class was generated from the following files:

• src/GlobalEffectable.h
• src/GlobalEffectable.cpp
